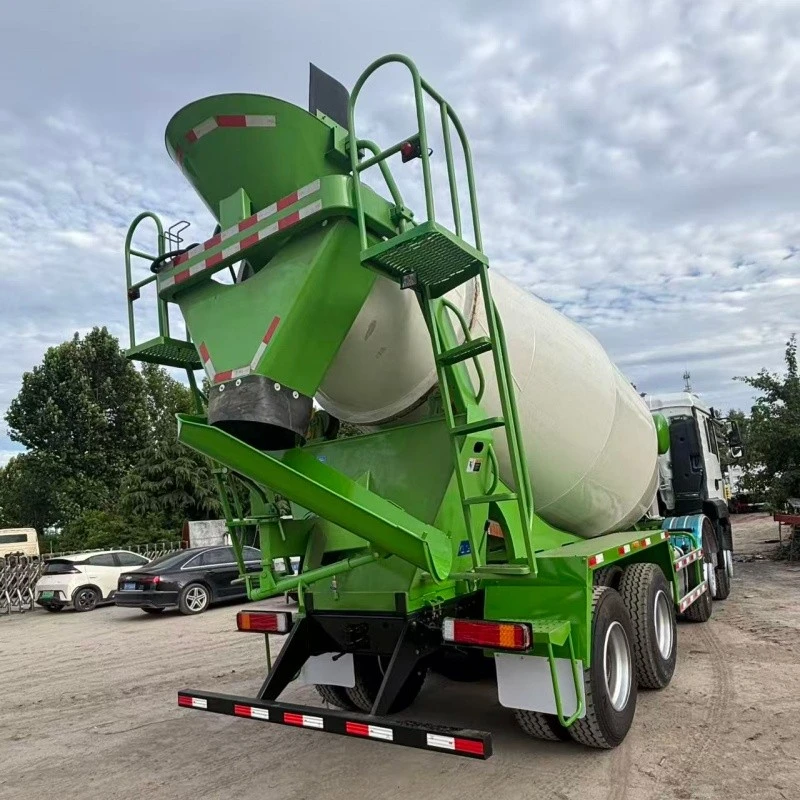

SHACMAN M3000S Concrete Mixer Truck

SHACMAN Delong M3000S 8×4 Concrete Mixer Truck
Weichai 350 HP Engine + Fast 10-Speed Transmission + MAN-Technology Axles; Mixing Volume: 7–8 m³
Optional 11.00R20 or 12R22.5 Tires; China VI Emission Standard
Cab Features: 4-Point Air Suspension + 10-inch Smart Touchscreen + 360° Surround View System
Ideal for commercial concrete transport, on-site pouring operations, and similar applications.

Send Inquiry

Product Introduction

SHACMAN Delong M3000S 8×4 Concrete Mixer Truck

The SHACMAN M3000S Concrete Mixer Truck (Official Model: SX5319GJBM3061) features an 8×4 drive configuration with a wheelbase of 1800 + 3000 + 1400 mm. The vehicle measures 10.1 meters in length and has a rated payload capacity of 17.02 tons. Standard equipment includes the Weichai WP8.350E61 China VI engine and the Fast 10JSD120T transmission, forming a mature and reliable powertrain that is easy to maintain. The upper-structure mixing drum is designed to rotate continuously during transport, effectively preventing the concrete from solidifying; this makes the vehicle widely suitable for short-to-medium-distance commercial concrete delivery scenarios.

Product Specifications

Category	Detailed Parameters
Basic Parameters	Vehicle Model (Announcement): SX5319GJBM3061
	Vehicle Type: Concrete Mixer Truck
	Brand: Shaanxi Automobile (SAIC)
	Dimensions (LWH): 10.12.553.99 m
	Curb Weight: 13.85 tons
	Max Speed: 80 km/h
	Mixing Drum Capacity: 7-8 m³
	Drive Form: 8x4
	Rated Load Capacity: 17.02 tons
	Front/Rear Overhang: 1.525 / 2.375 m
	Wheelbase: 1800 + 3000 + 1400 mm
	Front/Rear Track: Front: 2011 / 2011 mm; Rear: 1860 / 1860 mm
	Fuel Type: Diesel
Engine Parameters	Engine Model: Weichai WP8.350E61 (customizable)
	Fuel Type: Diesel
	Number of Cylinders: 6
	Max Output Power: 257 kW
	Max Horsepower: 350 HP
	Displacement: 7.8 L
	Emission Standard: Euro VI (China VI)
	Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharging & intercooling, EGR
	Rated Speed: 2100 rpm
Transmission	Transmission Model: Fast Gear 10JSD120T (customizable)
	Number of Gears: 10 forward gears
Chassis Parameters	Chassis Brand: Shaanxi Automobile (SAIC)
	Chassis Model: SX1319MB6F1
	Chassis Series: Delong M3000S
	Frame Size: 850 * 270 (8+5) mm
	Front Axle: MAN 5.5T dual-system brake front axle
	Rear Axle: 11.5T MAN single reduction axle
	Final Drive Ratio: 4.625
	Leaf Spring Count: 3 / 3 / 5
Tires	Tire Specification: 11.00R20 18PR (12R22.5 optional)

If you wish to customize specific components, inquire about pricing, or obtain further product information, please feel free to contact us.

Product Details

Chassis & Load-Bearing Capacity

MAN-Technology Axles

Both front and rear axles utilize MAN-engineered components-rated at 5.5 tons (front) and 11.5 tons (rear)-ensuring reliable load-bearing performance.

850×270 Double-Layer Frame

Features an 8+5mm thick design with localized reinforcements, delivering exceptional driving stability.

Optimized Waterproofing

The electrical architecture boasts an IP67 waterproof rating; both front and rear axles are fitted with specialized waterproof oil seals featuring multiple sealing lips, designed to withstand the frequent high-pressure washing cycles typical of concrete mixer operations.

Mixing Body Technology

Large-Blade Multi-Phase 3D Mixing

The SHACMAN M3000S Concrete Mixer Truck features large blades made of high-strength, wear-resistant steel, enabling a multi-directional, three-dimensional mixing mode. It accommodates a wide range of concrete slump values, ensuring uniform mixing results.

Rapid Loading & Discharging, Low Residue

Features an optimized drum design that facilitates fast loading and discharging speeds while minimizing residual material, thereby reducing waste.

Automated Powder Coating

Undergoes a rigorous 14-step, 22-station automated electrostatic powder coating process, resulting in a finish that is both aesthetically pleasing and highly durable.

Optional Intelligent Systems

Available options include electronic constant-speed control, intelligent anti-collision systems, smart weighing technology, remote control operation, water metering systems, drum mouth sealing mechanisms, and more.

Cab & Comfort

Four-Point Air Suspension

The cab is mounted on a four-point air suspension system that effectively filters out road vibrations and bumps, minimizing driver fatigue during long-haul journeys.
Air-Suspension Seats

Both the driver and passenger seats are equipped with air suspension systems; the driver's seat features integrated ventilation and heating functions to ensure comfort in all seasons-warm in winter and cool in summer.
Spacious Dual Bunks

The high-roof cab design accommodates two generously sized bunks, providing ample resting space for two-person driving teams.
Wrap-Around Dashboard

Features a warm and inviting gray-and-beige color scheme, incorporating a 5-inch LCD instrument cluster and a 10-inch 4G-enabled smart touchscreen display with extensive connectivity support. Navigation, Traffic Broadcasts, In-Vehicle Wi-Fi.

Safety and Intelligence

360-Degree Panoramic Imaging

The central control screen features a built-in 360-degree surround-view system, allowing the driver to monitor the vehicle's surroundings-whether parked or in motion-and effectively eliminate blind spots.
1.2 MPa Braking System

Reduces braking response time by 10% and effectively shortens braking distance by 1 to 1.5 meters.
APU (Integrated Air Processing Unit)

Achieves an oil filtration efficiency of over 98%, thereby extending the service life of the braking system.
Optional Advanced Driver Assistance Systems (ADAS)

Includes LDWS (Lane Departure Warning System), FCW (Forward Collision Warning), EBS (Electronic Braking System), ESC (Electronic Stability Control), AEBS (Autonomous Emergency Braking System), Tire Pressure Monitoring, and more.

Reliability and Durability

Eight Maintenance-Free Components

Maintenance-free battery, cab suspension, steering ball joints, steering shaft, long-life driveshaft, straight thrust rods, balance shaft, and drive axle-ensuring high vehicle uptime and low maintenance costs.
Optimized Routing of Lines and Harnesses

Separate routing for oil, air, fluid, and electrical lines, equipped with an electrical firewall for enhanced safety and reliability.

Product Applications of SHACMAN M3000S Concrete Mixer Truck

Commercial Concrete Batching Plants: Short-distance, high-frequency transport of commercial concrete.
Construction Sites: On-site concrete pouring for basements, roads, bridges, and similar structures.
Infrastructure Projects: Centralized concrete supply scenarios for airports, ports, dams, and other large-scale infrastructure developments.
Urban and Suburban Construction: Compliant with National VI emission standards to meet the requirements for urban transport operations.
Special Operating Conditions: Optional configurations-such as AMT transmissions, independent hydronic heating systems, and dual-chamber fuel tanks-are available to adapt to cold climates and specific operational requirements.
